CCHP Systems

BROAD Tri-Generational Solutions

Integrated turnkey trigeneration plants for industrial and district energy

BROAD Tri-Generational Solutions
  • Total efficiencyUp to 81%
  • Delivery modelTurnkey
  • Control systemIntegrated
  • Fuel configurationCustom

Overview

What are BROAD Tri-Generational Solutions?

Beyond supplying world-class absorption chillers, BROAD India offers comprehensive, turnkey Tri-Generational (CCHP) solutions. We act as the central system integrator, taking full responsibility for the thermal and mechanical engineering of your entire trigeneration plant - from initial feasibility and thermodynamic modeling to final commissioning and lifecycle maintenance.

Designing a CCHP plant requires precise matching of electrical load profiles with cooling demand, and ensuring that the absorption chiller is perfectly tuned to the exhaust characteristics of the chosen prime mover. By choosing BROAD's integrated solutions, you eliminate the friction between multiple vendors. We ensure the turbine, the heat recovery system, and the absorption chiller operate as a single, highly optimised organism that dynamically adapts to your facility's shifting demands.

Key specifications

What capacity and performance does it offer?

Total efficiency
Up to 81%
Delivery model
Turnkey
Control system
Integrated
Fuel configuration
Custom

Sizing & price

How is it sized and priced?

There is no list price: the cost depends on the capacity you need, the heat source or fuel conditions at your site, the cooling water system and the installation scope. BROAD quotes each project after a sizing study.

For a sizing study, share:

  • Peak and average cooling or heating load
  • Heat source or fuel, with its pressure, temperature and flow
  • Operating hours per year and your electricity tariff

Model finder

Which model fits your heat source?

Any
100 TR10,000 TR
ModelCooling CapacityDimensions (L×W×H)Energy Input
Custom Turnkey Plant100 - 10,000+ TRFacility scaleGas Turbine / Engine Exhaust

Engineering

What makes the BROAD design different?

Single Point of Responsibility

BROAD handles the thermodynamic design, equipment integration, and performance guarantees, reducing risk for the client.

Master Plant Control

Proprietary SCADA systems that provide holistic, real-time control over both power generation and thermal cooling assets.

Optimised Heat Recovery

Custom-engineered heat exchangers and chillers designed specifically for the exhaust profile of your chosen turbine.

Dynamic Load Management

Automated logic that balances electrical generation and cooling output based on time-of-day tariffs and facility demand.

Business case

What are the benefits of BROAD Tri-Generational Solutions?

Guaranteed Performance

Integrated design ensures the theoretical efficiencies of CCHP are actually realised in real-world operation.

Maximum Decarbonisation

Holistic system tuning ensures the lowest possible carbon intensity per megawatt of total energy delivered.

Streamlined Maintenance

A single service contract and unified technical support for the entire thermal and cooling infrastructure.

Where it’s used

Which industries use it?

  • District Cooling & Heating
  • Hyperscale Data Centres
  • Integrated Manufacturing Plants
  • Large Hospital Complexes
  • Smart City Infrastructure

Technology Advantages

⚙️Proven Absorption Core

  • • Same lithium bromide technology as BROAD chillers
  • • Decades of proven performance
  • • Industry-standard vacuum system control
  • • Heat exchanger integrity assurance
  • • Enhanced part-load performance

🧩Integrated Design

  • • Plug-and-play distributed energy
  • • Simplified installation and commissioning
  • • Seamless operation in remote locations
  • • Optimized for environments with grid constraints
  • • Comprehensive system-wide warranty

Case studies

Proven in the field

Real-world implementations of this technology across industrial facilities.

Pakistan Synthetic Limited (PET), Hub
Plastics · 2 MW + 1 MW gas engines

Global reference

Pakistan Synthetic Limited (PET), Hub

Plant efficiency 42% → 81%

A BROAD multi-energy chiller (1,857 kW, ≈ 528 TR) recovers flue gas and jacket water heat from MTU and Jenbacher engines, replacing electric chillers.

Alkaram Textile, Nooriabad
Textile · 2 × 1.5 MW gas engines

Global reference

Alkaram Textile, Nooriabad

Plant efficiency 43.5% → 81%

Two BROAD exhaust and jacket water chillers (1,590 kW + 1,100 kW, ≈ 765 TR) cool a new 240-loom air-jet weaving plant.

125 Broad Street, New York
Commercial office · 1 MW gas engine

Global reference

125 Broad Street, New York

Carbon footprint cut by over 70%

A 320 RT BROAD hot water chiller is part of a CCHP plant expected to save over $1.25 million a year and cut electricity use by 42%+.

BROAD Tri-Generational Solutions: frequently asked questions

Does BROAD supply the gas turbines or engines for the trigeneration plant?

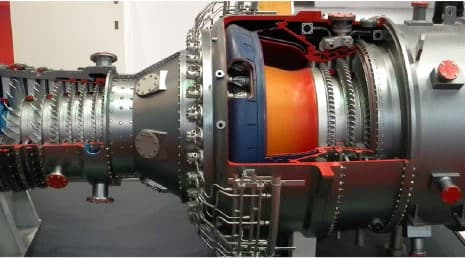

While BROAD manufactures the absorption chillers and heat recovery components, we partner with leading global manufacturers (such as Solar Turbines, GE, Jenbacher, and Caterpillar) for the prime movers. As the system integrator, we manage the procurement, thermodynamic matching, and integration of these components into a unified turnkey solution.
What is involved in a BROAD trigeneration feasibility study?
Our engineers analyze your facility's hourly electrical and cooling load profiles for a full year. We then thermodynamically model different turbine and chiller combinations, factoring in local natural gas prices and grid electricity tariffs, to determine the optimal system sizing, capital cost, and projected Return on Investment (ROI).
Can an existing power generation plant be retrofitted into a trigeneration system?
Yes. This is known as a 'bottoming cycle' retrofit. If your facility already has captive power generation (gas turbines or diesel gensets) that is exhausting heat to the atmosphere, BROAD can retrofit a custom waste-heat absorption chiller to capture that exhaust and produce free cooling, upgrading your plant to a highly efficient trigeneration system.
